TTL-RS485 Module | Model: M100S48

The TTL-to-RS485 module convert the TTL level to RS485 level. From a 2×5-pin TTL input header to a two-pole screw terminal output port. The pinout of the input pins makes it plug-in compatible with the SBC-SAM9G45 development board's COM0-COM3 expansion headers. A ribbon cable is provided to make that connection. However, the standard 2.54mm pin pitch makes it easy to wire up to practically any development system with TTL UART headers

ADM2483 isolated RS485 transceiver
Converts TTL level logic to RS485 levels

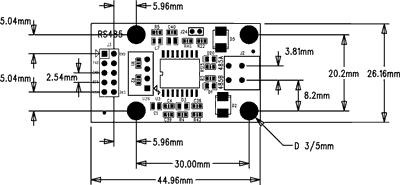

Size: 44 × 26 mm
Board Support: SBC-SAM9G45 | NET-SAM9X25

Input interface

TTL level input, 2×5-pin 2.54mm (0.1") pitch header.

Pin Signal Name Pin Signal Name
1 NC 2 RXD
3 TXD 4 NC
5 GND 6 NC
7 RTS 8 CTS
9 VDD5V 10 VDD33(3.3V)

Output interface

RS485 level, screw terminal connector, 3.81mm pitch.

Pin Signal Name
1 RS485B
2 RS485A

Order Info

Model Item Price Buy Now
M100S48 TTL-RS485 Module $15USD
