IPC-NET25 | Atmel AT91SAM9X25 Indurtria PC board
  • Working Temperature: -40 to +85 Celsius
  • Base on AT91SAM9X25, with 128MB DDR2 and 256MB Flash
  • two Ethernet,  USB Host/Device
  • TF Card support
  •  Support Linux 2.6.39 system

仅支持批量购买
需求请联系我们

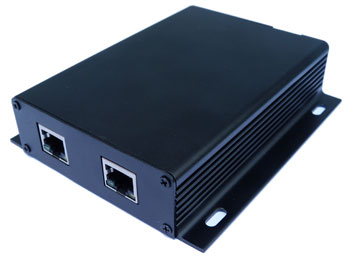

CoreWind IPC-NET25 is a low-cost industria PC based on Atmel AT91SAM9X25 ARM9 processor. It can support memory up to 128MB DDR2 SDRAM and 256MB Nand Flash. The device has Two Ethernet, TF card, USB Host and utilizes a 12V DC power supply. It is a ready-to-run Linux 2.6 system.

HardWare

Full-featured PC, tiny and power saving
Atmel AT91SAM9X25 ARM core processor @ 400MHz
ARM926EJ-STM core with MMU capable
128Mbyte SDRAM
256MB NAND FLASH
 Watch-Dog: On chip watch-dog timer
 TF card slot: One TF card slot in  the case
 USB Host: One USB Host, 480Mhz
 USB Deveice : One USB Device
 Mechanical
Supply Voltage: 12V/1A
Power Consumption: 1.4W - 3W, depending on CPU speed and slected features
Dimensions: 105x 118 x 29mm
Operation temp(case): -40° to 85°C
Storage temperature: -40° to 85° C

SoftWare

Support Linux 2.6.39 System
 USB Host
NET: Ethernet, TCP/IP, Telnet
Serial port driver, RS485/RS232 Driver
 UBI filesystem

Applications

Industrial control
Field Communication
