- Working Temperature: -40 to +85 Celsius
- Atmel SAMA5D34 Cortex-A5 CPU, 536 MHz
- 512 MB DDR2 SDRAM, 256 MB NAND Flash
- Two Ethernet support
- TFT LCD with touchscreen, Audio
- CAN, RS485, RS232 support
|
仅支持批量购买
需求请联系我们 |

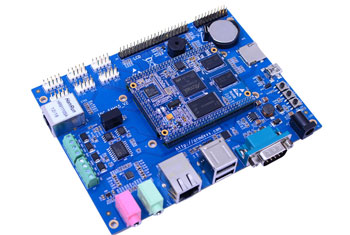

IPC-SAMA5D35 is a high-performance ATMEL SAMA5D35 industrial PC board, from Corewind design, production and distribution sales. It uses ATMEL SAMA5D35 ARM Cortex-A5 processor , running at up to 536MHZ. IPC-SAMA5D35 Contain one CPU board(CM-SAMA5D35 ) and one base board(IPC-SAMA5D35 Base board).
The CM-SAMA5D35 processor card has external 256MB DDR2 SDRAM, 256MB Nand Flash and 4MB SPI Flash. It Integrated one 10/100/1000 MBit/s Ethernet chips on board, and many peripherals.
The IPC-SAMA5D35 is the base board for the CM-SAMA5D35. It comes with a variety of common standard interfaces, such as Two Ethernet, USB Host, SD card, DB9 serial port, RS232/RS485 Serial port, CAN Bus interface, audio input and output ports, as well as some of the on-board resources testing devices such as buzzer, keypad, GPIO ports, etc.
CoreWind offers Linux 3.6.9 for the boards. They are high-performance single board computer for industrial needs.
CM-SAMA5D35 CPU Board Feature
CPU processor
- ATMEL SAMA5D35 ARM processor
- Cortex-A5, working at 536MHZ.
DDR2 RAM Memory
- 256MB DDR2 RAM, 32bit data bus
Flash Memory
- 256MB Nand Flash
- 4MB SPI Flash
Pin interface
- 2 x 60 pin 2.0mm space DIP connector
- 1 x 30 pin 2.0mm space DIP connector
- Two Ethernet and seven Serial port
- Resource: USB, Ethernet, Serial, SSC Audio, CAN, SDIO,SPI, IIC, GPIO
On-board resources
- Integrated 1GMBit Ethernet on board
- 2 x LED
- Supply Voltage 3.3V
PCB Size
- 8 layer, 52 x 64 (mm)
- Low power consumption, only 0.5W

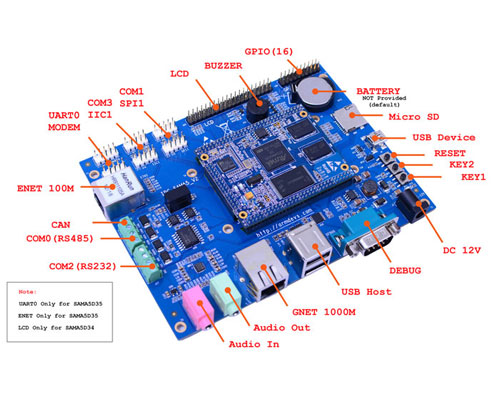

IPC-SAMA5D35 Base Board Feature
|
Ethernet
|
Two Ethernet Port
> One Gbit Ethernet support, Rj45 interface
> One 100M ethernet support, RJ45 interface
|
|
Serial Port
|
Total Seven Serial port:
> Debug Serial: RS232 Level, DB9 connector
> USART0: RS485 level, connector
> USART1: TTL Level(5-wire, expand with 2x5Pin header COM )
> USART2: RS232 Level(Expand with 3.81 connector)
> USART3: TTL Level(5-wire, expand with 2x5Pin header COM )
> UART0: TTL Level(3-wire, expand with 2x5Pin header COM)
> UART1: TTL level(3-wire, reused with the Audio chips)
|
|
CAN Bus
|
1 x CAN Bus 2.0
|
|
Standard interface
|
Two USB Host
One USB Device interface
One Audio In/Out interface
One TF card interface
|
|
Board Resource
|
Key: 3 user key, contain one Reset Key and two User key
One RTC Battle
|
|
GPIO
|
16 GPIO interface
|
|
PCB Size
|
145 x 110mm, 2 layer
|
|
Power In
|
12V
|
|
System
|
Linux 3.6.9
|
Software support
|
U-Boot
|
Support update the system by USB Disk
Support Update the system by Ethernet
|
|
|
Version
|
Linux 3.6.9
|
|
|
Driver Support
|
CAN Driver
|
Support CAN Bus
|
|
Serial Port Driver
|
Support Serial port Send/Receive, Support RS232 and RS485 mode
|
|
|
RS485
|
Support Modbus
|
|
|
Audio
|
Support Audio In/Out
|
|
|
USB Host
|
Support USB Disk, USB Mouse, USB Keyboard
|
|
|
1000M Ethernet
|
Support 1000M Ethernet, TCP/IP Support
|
|
| 100M ethernet | Support 100M Ethernet, TCP/IP Support | |
|
TF Card
|
Support TF card, up to 32GB
|
|
|
GPIO Driver
|
GPIO Out/In driver
|
|
|
Buzzer
|
Buzzer
|
|
|
Key driver
|
Key Driver support
|
|
|
System function
|
RTC，Watchdog
|
|
|
FS
|
UBI File system
|
Support UBI File system
|
