IIC-RTC Module | Model: M100RT1

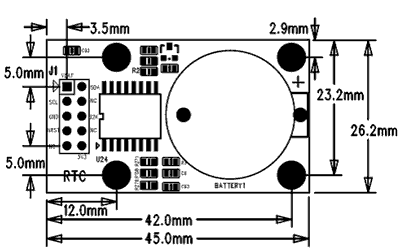

This IIC-RTC module features a 2×5-pin I2C input header. The pinout of the input pins makes it plug-in compatible with the SBC-SAM9G45 development board's J7 IIC header.  DS3231SN# real-time clock chipExpand RTC function with the IIC busSupports backup batterySize: 45 × 26 mmInput InterfaceI2C input, 2×5-pin 2.54mm (0.1") pitch IDC10 connector.
Output InterfaceReal-Time Clock function with CR2032 backup battery.
|
 |
Order Info
| Model | Item | Price | Buy Now | |
| M100RT1 | IIC-RTC Module | $10USD |  |
|
