Here is a list of examples on how to wire components, power supplies, connectors, sensors, etc to the CM-SAMA5D3x to create your own Linux embedded board. Click on the image of the device you want to add.

If you want to get more details, you can see the schematic file of the base board.

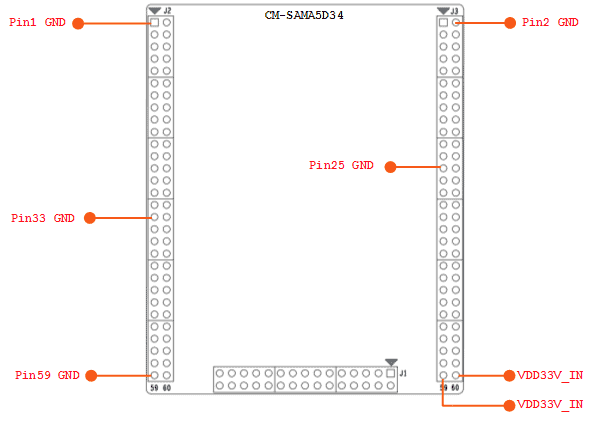

• Power supply

  CM-SAMA5D34 needs a single line 3.3 volt DC power supply which can be provided in any combination on the following pins: Signal Name Type Pin # Description VDD33V_IN Power J3-Pin59, J3-P60 Main power supply. Typical voltage 3.3V. GND Power J2-Pin1, Pin33, Pin59 J3-Pin2, Pin25 Common ground.

• Reset schematic

  NRST is the Board reset Pin, low voltage can enable the Reset. Signal Name Type Pin # Description NRST I J1-Pin18 Low voltage can enable the Reset

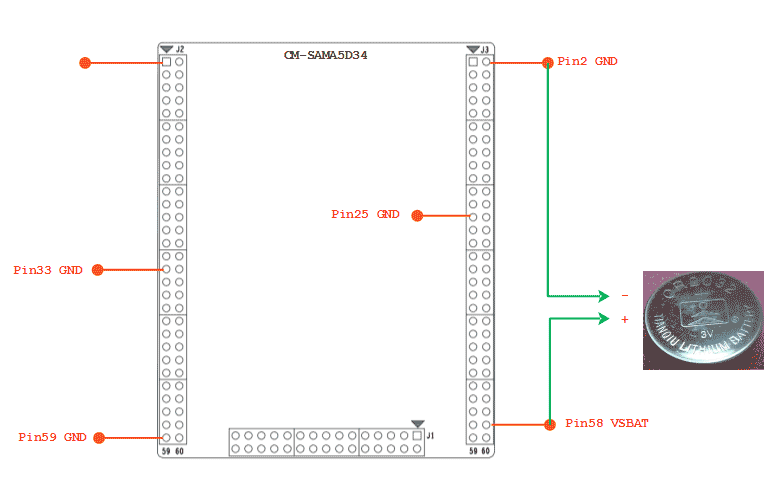

• RTC Backup battery

  Applying 3 Volt DC on J3-Pin2(GND) and J3-Pin58 (VBAT +3VDC) it is possible to mantaint the RTC (Real Time Clock) active when the power supply if off. This will mantain the system clock up to 6 months with no power using a small CR2032 Lithium battery. A bigger battery can be used to extend the time duration. Signal Name Type Pin # Description VSBAT Power J3-Pin58 RTC Power In GND Power J3-Pin2 Common ground.

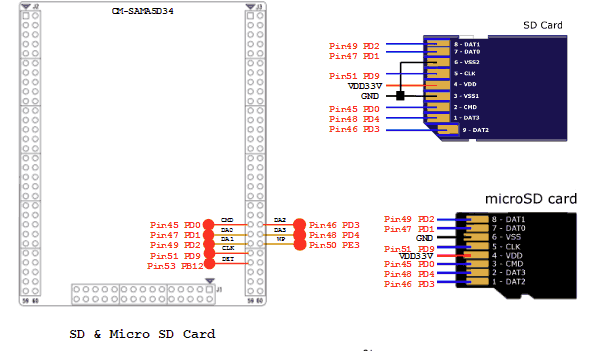

• SD Card and TF card

  CM-SAMA5D34 can expand 1 SDIO interface, it support SD card or TF card. Name Function Pin # Type  Description PD9 MCI0_CK J3-Pin51 I/O Multimedia Card Clock PD0 MCI0_CDA J3-Pin45 I/O Multimedia Card Slot Command PD1 MCI0_DA0 J3-Pin47 I/O Multimedia Card 0 Slot A Data PD2 MCI0_DA1 J3-Pin49 I/O Multimedia Card 0 Slot A Data PD3 MCI0_DA2 J3-Pin46 I/O Multimedia Card 0 Slot A Data PD4 MCI0_DA3 J3-Pin48 I/O Multimedia Card 0 Slot A Data PB12 SW2 J3-Pin53 I/O TF card Probe

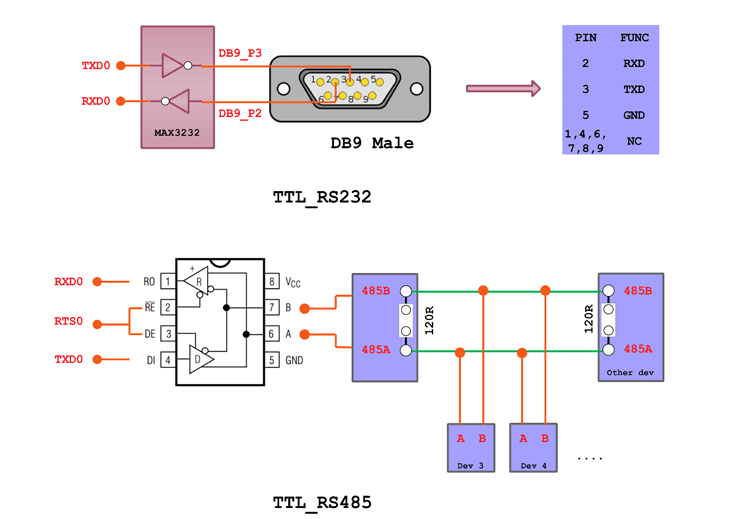

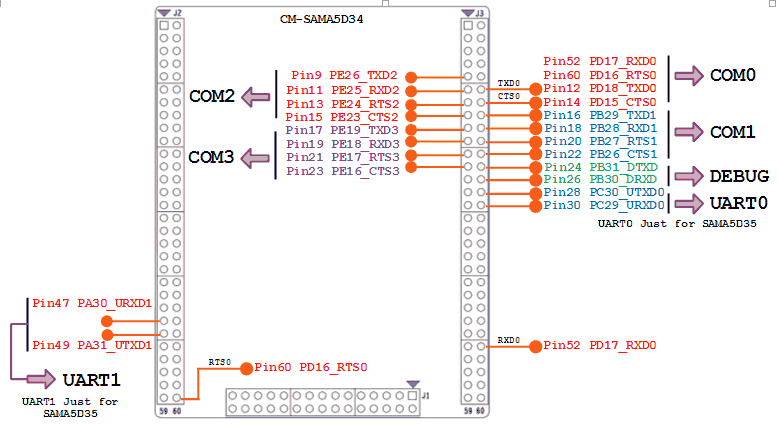

• Serial Port(RS232,RS485)

  CM-SAMA5D34 can expand 5 Serial port, one is Debug serial, and the others is four 5-wire serial port。 Name Function Pin # Type  Description Debug Unit - DBGU PB31 DTXD J3-Pin24 O Debug Transmit Data PB30 DRXD J3-Pin26 I Debug Receive Data USART-0 PD17 RXD0 J3-Pin52 I USART serial data in PD18 TXD0 J3-Pin12 O USART serial data out PD16 RTS0 J2-Pin60 I USART request to send PD15 CTS0 J3-Pin14 O USART clear to send USART-1 PB28 RXD1 J3-Pin18 I UART serial data in PB29 TXD1 J3-Pin16 O UART serial data out PB27 RTS1 J3-Pin20 I UART request to send PB26 CTS1 J3-Pin22 O UART clear to send USART-2 PE25 RXD2 J3-Pin11 I UART serial data in PE26 TXD2 J3-Pin9 O UART serial data out PE24 RTS2 J3-Pin13 I UART request to send PE23 CTS2 J3-Pin15 O UART clear to send USART-3 PE18 RXD3 J3-Pin19 I UART serial data in PE19 TXD3 J3-Pin17 O UART serial data out PE17 RTS3 J3-Pin21 I UART request to send PE16 CTS3 J3-Pin23 O UART clear to send

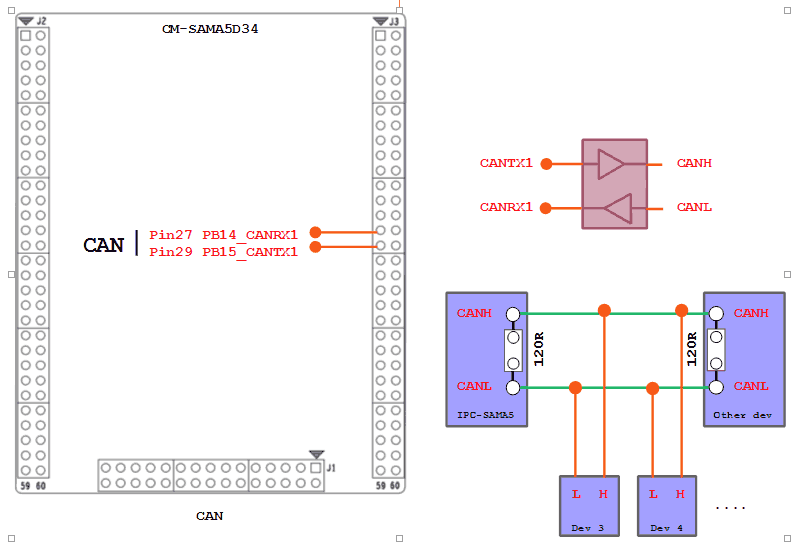

• CAN Bus

  CM-SAMA5D34 have one CAN interface, the pins define is as follow: Name Function Pin # Type  Description PB14 CANRX1 J3-Pin27 I CAN input PB15 CANTX1 J3-Pin29 O CAN output ABout the CAN schematic, it use the ADUM1206 chips

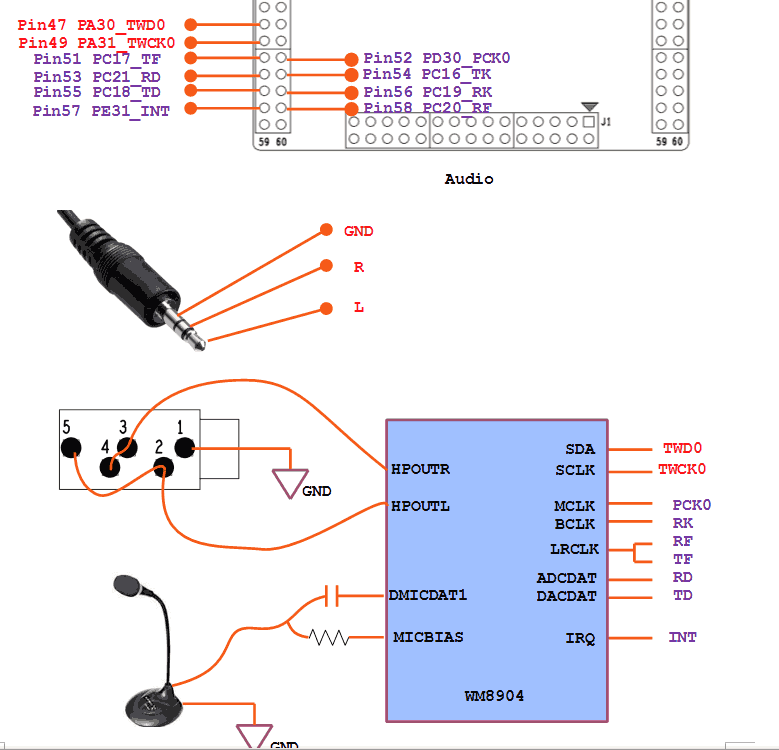

• Audio

  CM-SAMA5D34 have the SSC signal, it can expand the Audio chips. Name Function Pin # Type  Description PA30 IIC J2-Pin47 I/O IIC configure PA31 IIC J2-Pin49 I/O IIC configure PC17 TF J2_Pin51 I/O SSC Transmit Frame Sync PC21 RD J2_Pin53 I SSC Receive Data PC18 TD J2_Pin55 O SSC Transmit Data PE31 INT J2_Pin57 I/O   PD30 PCK0 J2_Pin52 O   PC16 TK J2_Pin54 I/O SSC Transmit Clock PC19 RK J2_Pin56 I/O SSC Receive Clock PC20 RF J2_Pin58 I/O SSC Receive Frame Sync We advise you to use the WM8904 Audio chips, the details was in the IPC-SAMA5D34 schematic.

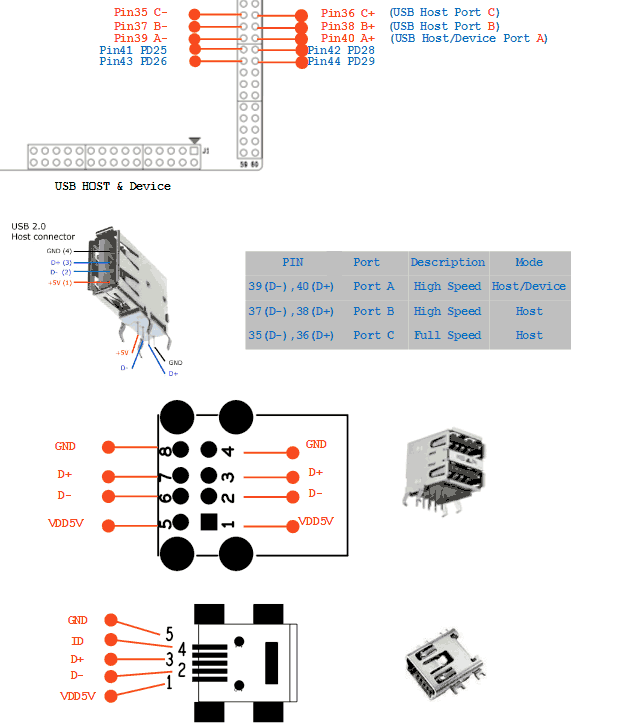

• USB Host/Device

  CM-SAMA5D34 can expand 3 USB, contain two USB Host, one USB device. Function Pin # Type  Description Modle USB Host/Device A HHSDMA/DHSDP J3-Pin39 A High Speed Host/device HHSDPA/DHSDM J3-Pin40 A High Speed USB Host B HHSDMB J3-Pin37 A High Speed Host HHSDPB J3-Pin38 A High Speed USB Host C HHSDPC J3-Pin35 A  Full Speed Host HHSDMC J3-Pin36 A  Full Speed USB  A can expand USB Host or USB Device。USB B and C can expand USB Host function.

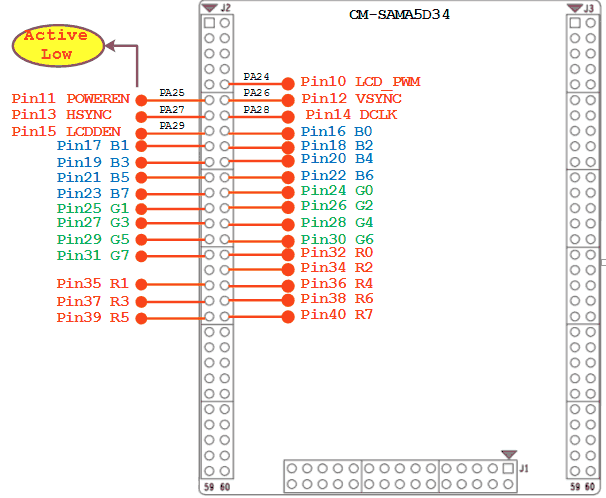

• LCD interface

  CM-SAMA5D34 have one TFT lcd interface.

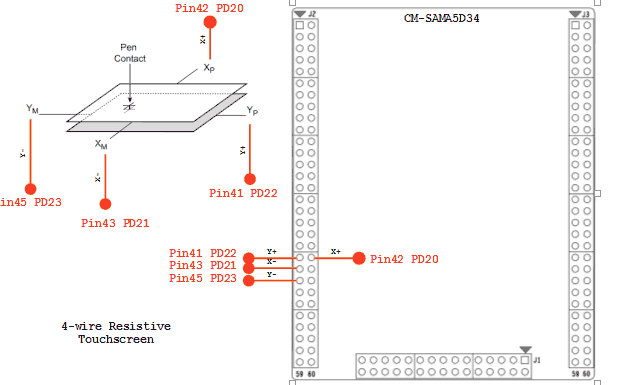

• Touchscreen interface

  CM-SAMA5D34 can expand one touchscreen interface. Name Function Pin # Type  Description PD20 X+ J2-Pin42 AI Touch screen X+ (right) PD21 X- J2-Pin43 AI  Touch screen X- (left) PD22 Y+ J2-Pin41 AI  Touch screen Y+ (top) PD23 Y- J2-Pin45 AI   Touch screen Y- (bottom

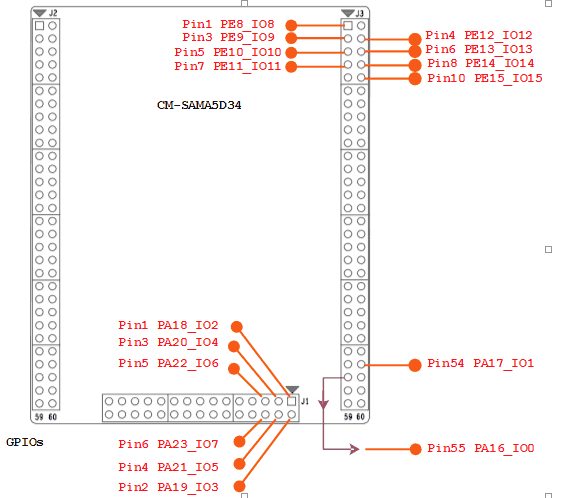

• GPIO

  CM-SAMA5D34 contain more IO interface, advise the 16 GPIO for user.

• 1000M ethernet interface

  CM-SAMA5D34 have the 1000M Ethernet chips, you can connect it to RJ45 ethernet connector (with embedded line tranformers).

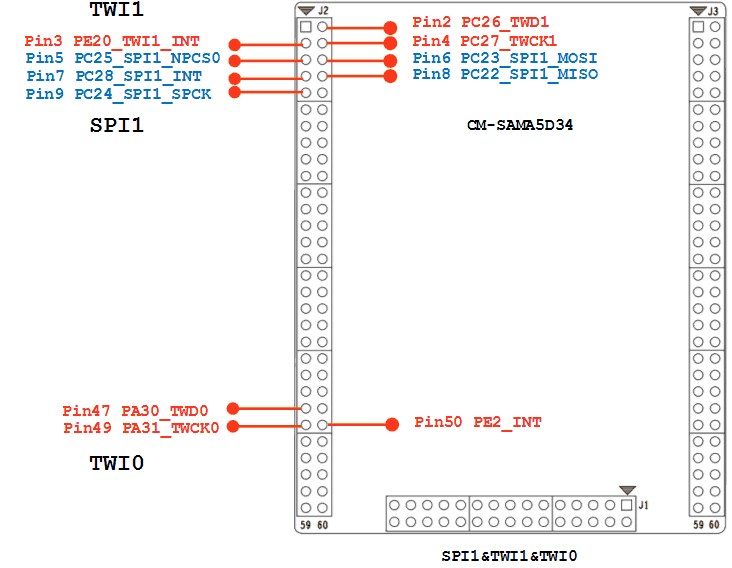

• SPI1&TWI1&TWI0

  CM-SAMA5D34 have one SPI interface and two TWI interface.

• Reserver
• Reserver

Notice, all the interface support 3.3V
